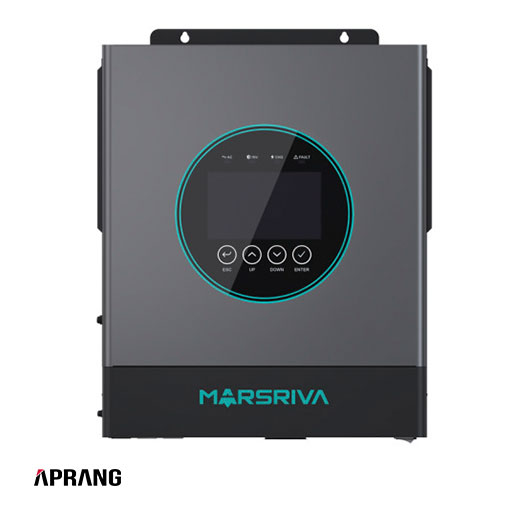

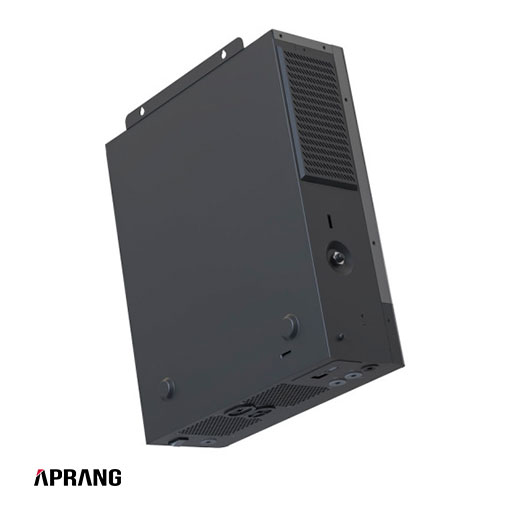

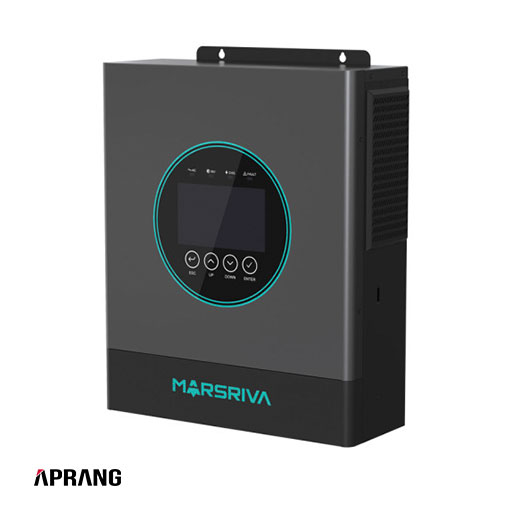

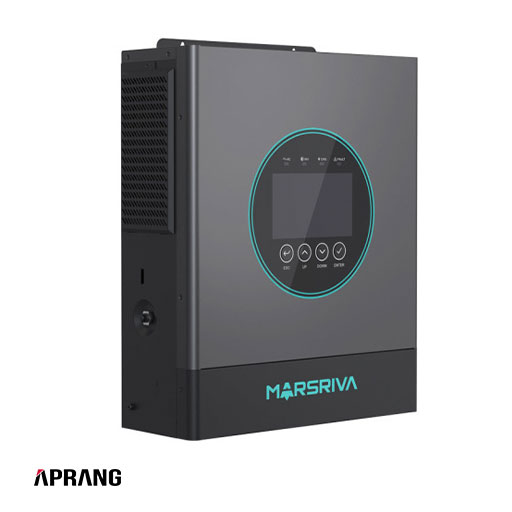

سانورتر مارس ریوا مدل MR-SPF6.5K-LP1-TL20E ظرفیت 6.5kWMarsriva Sunverter model MR-SPF6.5K-LP1-TL20E Capacity 6.5kW

AC CHARGING & SOLAR CHARGING/Max. AC Charging Current: 120A
AC CHARGING & SOLAR CHARGING/Max. Hybrid Charging Current: 120A
AC CHARGING & SOLAR CHARGING/Max. PV Input Current: 27A
AC CHARGING & SOLAR CHARGING/Max. PV Input Power: 9000W
AC CHARGING & SOLAR CHARGING/Max. PV Open Circuit Voltage: 500VDC
AC CHARGING & SOLAR CHARGING/Max. Solar Charging Current: 120A
AC CHARGING & SOLAR CHARGING/MPPT Voltage Range: 60 – 450VDC (Min. 80VDC without battery connected)
AC CHARGING & SOLAR CHARGING/Solar Charger Type: MPPT
BATTERY/Battery Type: Lead-acid / Lithium / User-defined
Battery/Nominal Battery Voltage: 48VDC
ENVIRONMENT/Humidity: 5% to 95% Relative Humidity (Non-condensing)
ENVIRONMENT/Operating Temperature: -10°C to 50°C
ENVIRONMENT/Storage Temperature: -15°C to 60°C
INPUT/Frequency Range: 50 / 60Hz ±10Hz (Auto sensing)
INPUT/Nominal Voltage: 208 / 220 / 230 / 240VAC
INPUT/Voltage Range: 170 – 264VAC (UPS Mode); 90 – 280VAC (APP/GEN Mode)
OUTPUT/Efficiency: Max. 94% (Batt. Mode)
OUTPUT/Nominal Output Frequency: 50 / 60Hz ± 0.1% (Batt. Mode)
OUTPUT/Nominal Output Voltage: 208 / 220 / 230 / 240VAC ± 5%
OUTPUT/Output Power: Nominal 6kW; 6.5kW @PV+Battery
OUTPUT/Surge Power: 2 times of rated power
OUTPUT/Transfer Time: 10ms (UPS/APP Mode); 20ms (GEN Mode)
PHYSICAL & COMMUNICATION/Communication Interface: BMS(485/CAN), WiFi Module

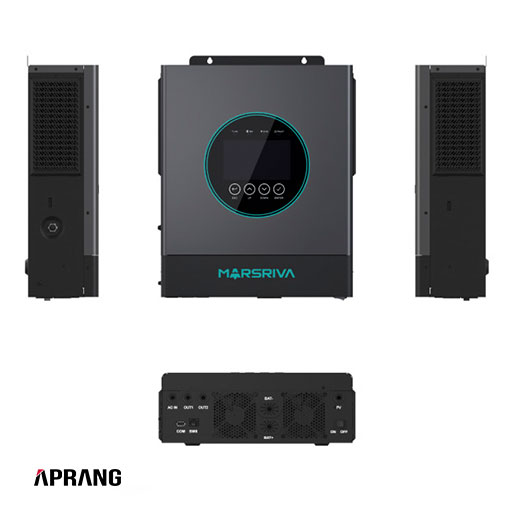

PHYSICAL & COMMUNICATION/Dimension, WxHxD (mm): 336×410×110
PHYSICAL & COMMUNICATION/Net Weight (kg): 10.0
RATED POWER: 6.5kVA / 6.5kW
