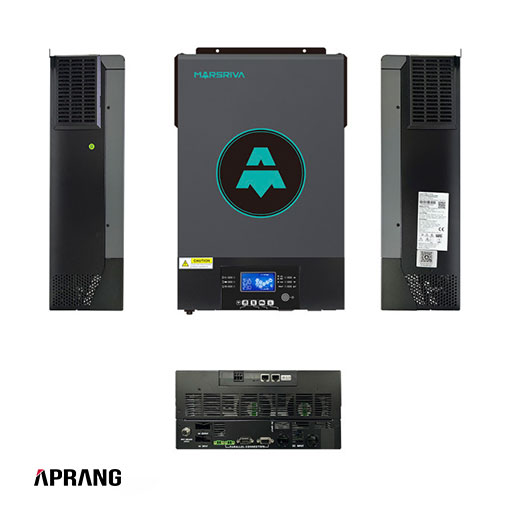

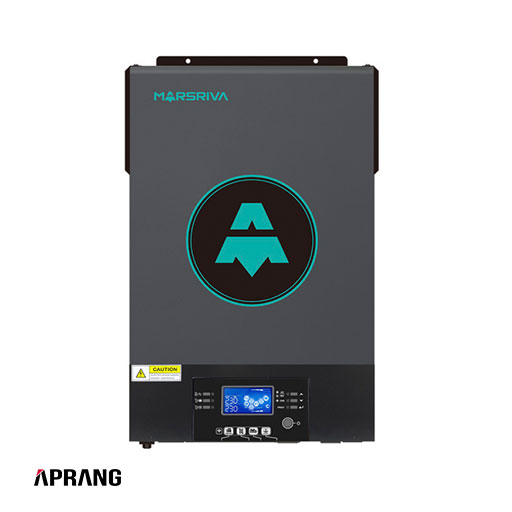

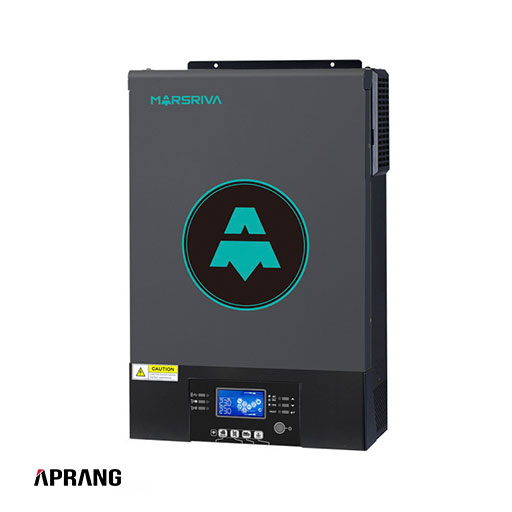

سانورتر مارس ریوا مدل MR-SPF6000K ظرفیت 6kWMarsriva Sunverter model MR-SPF6000K Capacity 6kW

AC CHARGING & MPPT SOLAR CHARGING/AC Charging Algorithm: 3 step
AC CHARGING & MPPT SOLAR CHARGING/Max. AC Charging Current: 120A
AC CHARGING & MPPT SOLAR CHARGING/Max. Charging Current: 120A (AC charging plus solar charging)
AC CHARGING & MPPT SOLAR CHARGING/Max. PV Array Open Circuit Voltage: 500VDC
AC CHARGING & MPPT SOLAR CHARGING/Max. PV Array Power: 6000W
AC CHARGING & MPPT SOLAR CHARGING/Max. PV Input Current: 27A
AC CHARGING & MPPT SOLAR CHARGING/MPPT Operating Voltage Range: 120VDC – 430VDC
Battery/Floating Charging Voltage: 54VDC
Battery/Nominal Battery Voltage: 48VDC
Battery/Overcharge Protection: 66VDC
Input/Input Voltage Range (Selectable): 110 – 280VAC
Input/Nominal Input Frequency: 50Hz / 60Hz (Auto sensing)
Input/Nominal Input Voltage: 230VAC
Output/Harmonic Distortion: ≤3% THD (Linear Load); ≤5% THD (Non-linear Load)
Output/Nominal Output Frequency: 50Hz / 60Hz
Output/Output Voltage Regulation: 230VAC ± 5%
Output/Peak Efficiency: 94% (Line mode), 92% (Battery mode), 98% (ECO/Bypass mode)
Output/Surge Power: 2* rated power for 5 seconds
Output/Transfer Time: 0ms (Line mode to Battery mode); 4ms (Inverter mode to Battery mode)
Output/Wave Form: Pure sine wave

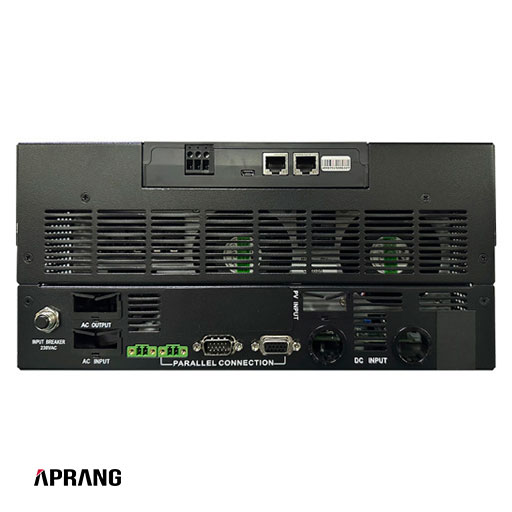

PARALLEL CAPABILITY: Yes, 9 units

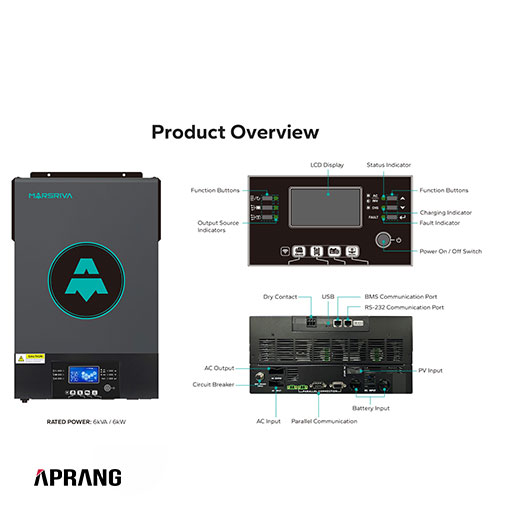

PHYSICAL & COMMUNICATION/Communication Interface: USB,RS232,BMS,WiFi,Dry-contact
PHYSICAL & COMMUNICATION/Dimension, DxWxH (mm): 140×295×468
PHYSICAL & COMMUNICATION/Net Weight (kg): 12
RATED POWER: 6000VA / 6000W
